Critical XR-D Power Supply - Ink Stop Consumables

Critical XR-D Power Supply

Regular price
£431.99
Sale price
£431.99
Regular price
Sold out
Unit price
per
Tax included.

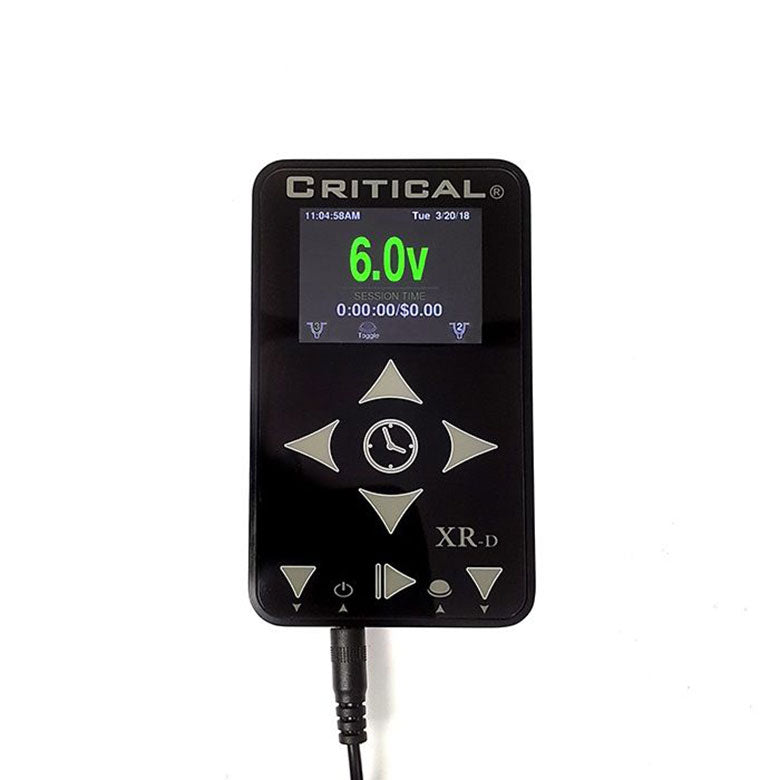

The new Critical XR-D Power Supply features a new full-colour TFT display with user selectable colour themes and large easy to read fonts. New capacitive touch user interface, an improved mount design for better flexibility. A built in oscilloscope for a visual approach to coil machine tuning! The highly popular jump-start feature from the Critical CX range can now be assigned to certain pre-sets to save even more time when switching between your machines of choice. This XR-D model has a dual machine output.

Features and specs
• New-Full colour TFT display with user selectable colour themes and large easy to read fonts.
• New-Billet aluminium CNC machined housing
• New-Carefully tuned Capacitive touch user interface
• New for the XR-d is a built in oscilloscope for a visual approach to coil machine tuning
• New- mount design for more mounting flexibility.
• New- Jump start feature and maintained pedal modes now independently assignable to pre-set/output buttons
• New- Genuine high quality Amphenol 1/4” jacks for better power delivery and long life.
• Dual Outputs on the XR-d model
• 4 amp peak current, 2 amp continuous
• Session meter based on user set hourly rate: session mode, run time mode, or hybrid mode (new “Hybrid” billing mode automates user input)
• Pedal override button: No need for a foot pedal
• Precision regulated set point voltage 0-18vdc
• Built in short circuit protection
• .1 volt adjustment resolution
• Time of day
• Voltage pre-sets with 2, 4, or 6 machine memory modes
• Non-volatile memory
• Universal input 90-240vac 50/60hz
• Accepts standard 1/4″ clip cord and foot pedal connections
• Volts, Amps, Speed (hz), Duty Cycle (%), and STL
• Easily bagged with typical machine or bottle baggies
• 2 year full manufacturer warranty
• Included: XR-D power supply, Magnet mount, Power cord
• Made in the USA
